EZ Connect Utility Strip Light LED
* This surface mount Utility Strip Light features unique snap-to-fit terminals that can connect multiple units
together for a desired length, maximum 6 units with one power connector.
* Great for use in cabin, locker, engine compartment or other interior and exterior.
* Detachable terminals are perfectly made to resist corrosion and moisture
* Black rubber gasket included for mounting to all surfaces; ready to install for single unit use, and cut-to-fit
(cut along the slot on the gasket) for connecting multiple units
* 9 LEDs of super flux (P4) type, super bright
* LED circuitry is completely potted by epoxy to ensure permanent and water proof seal
* Two bare end wires of 6 (15mm) length, separate lead wire and ground wire
* Available in all colors in clear lens
* Rated for 12V, tested to 13.8V

SF No. Description Input Voltage Lighting Color Lens Color Nos. of LEDs Current Draw                                                               (mA)     at 13.8V
SFA41270-1 EZ Connect Strip Light Clear 12 V Cool White Clear 9 60 mA
SFA41270-2 EZ Connect Strip Light Blue 12 V Blue Clear 9 60 mA
SFA41270-3 EZ Connect Strip Light Green 12 V Green Clear 9 60 mA

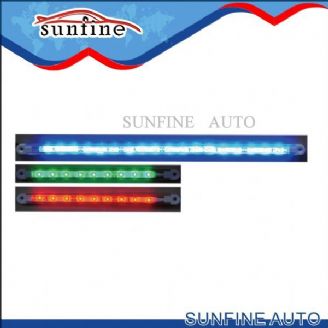

LED Flex Light with Mounting Track 6 , 12 , 18 , 27.4
Flexible LED Light Strip includes mounting track and plastic end mounts, as well
as 3M double sided adhesive tape on the back of track, fits all curved surfaces
and contours, and is ideal for auxiliary lighting on boats, kayaks and vehicles. 6
Navigation Kit of Green & Red colors is great for kayak to enhance its night time
safety
SMD LED of up-to-date technology, super bright
Completely sealed by clear epoxy to ensure a permanent water proof and UV
resistance, IP65 rated
Low current draw
Rated for 12V, tested to 13.8V

SF NO. LengthNos. ofLEDsInputVoltage LED TypeCurrent Drawat 13.8ALuminousFlux

SFA41509-1  6(150mm) 9 12V SMD3528 0.06 A 45 lm
SFA41509-2  6(150mm) 9 12V SMD3528 0.06 A 45 lm
SFA41509-3  6(150mm) 9 12V SMD3528 0.06 A 45 lm
SFA41509-4  6(150mm) 9 12V SMD3528 0.06 A 45 lm
SFA41509-5 12(300mm) 18 12V SMD3528 0.12 A 90 lm
SFA41509-6 12(300mm) 18 12V SMD3528 0.12 A 90 lm
SFA41509-7 12(300mm) 18 12V SMD3528 0.12 A 90 lm
SFA41509-8 12(300mm) 18 12V SMD3528 0.12 A 90 lm
SFA41509-9 18(450mm) 27 12V SMD3528 0.18 A 135 lm
SFA41509-10 18(450mm) 27 12V SMD3528 0.18 A 135 lm
SFA41509-11 18(450mm) 27 12V SMD3528 0.18 A 135 lm
SFA41509-12 18(450mm) 27 12V SMD3528 0.18 A 135 lm
SFA41509-13 27.4      42 12V SMD3528 0.28 A 210 lm
SFA41509-14 27.4      42 12V SMD3528 0.28 A 210 lm
SFA41509-15 27.4      42 12V SMD3528 0.28 A 210 lm
SFA41509-16 27.4      42 12V SMD3528 0.28 A 210 lm

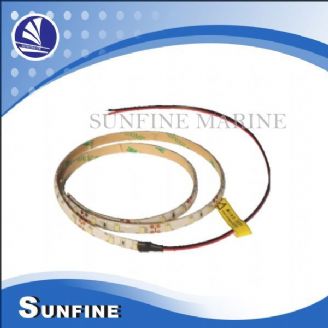

Flexible LED Light Strip Waterproof
* Completely sealed by transparent PU epoxy, water proof IP65 rating and UV resistant
* 3M double sided backing tape
* Two lead wires, each 8 /20cm long
* Constant working current to ensure long life span of the LEDs
* Ideal for boats, vehicles and decoration
SF No.InputLengthLightingLEDLEDBeamLuminousWattsCurrent

       VoltInch mmColorTypeQtyAngleIntensityDraw
SF41310-1 12 V 27 68 Blue 3528 42 120 80 lm 3 20ma
SF41310-2 12 V 27 68 CW 8,000K 3528 42 120 315 lm 3.3 20ma
SF41310-3 12 V 51 130 Blue 3528 78 120 150 lm 4.6 20ma
SF41310-4 12 V 51 130 CW 8,000K 3528 78 120 560 lm 4.6 20ma
SF41310-5 12 V 74 189 Blue 3528 114 120 220 lm 6.5 20ma
SF41310-6 12 V 74 189 CW 8,000K 3528 114 120 850 lm 6.8 20ma
SF41310-7 12 V 27 68 Blue 5050 42 120 240 lm 12 60ma
SF41310-8 12 V 27 68 CW 8,000K 5050 42 120 750 lm 12 60ma
SF41310-9 12 V 51 130 Blue 5050 78 120 430 lm 23 60ma
SF41310-10 12 V 51 130 CW 8,000K 5050 78 120 1400 lm 23 60ma
SF41310-11 12 V 74 189 Blue 5050 114 120 627 lm 25 60ma
SF41310-12 12 V 74 189 CW 8,000K 5050 114 120 2000 lm 27 60ma

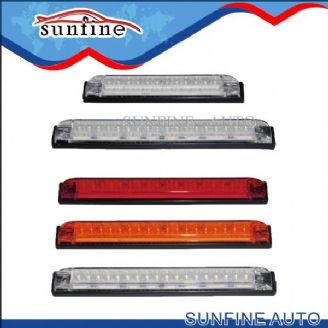

4''/6''&8'' Slim Line LED Utility Light

* This surface mount Slim Line LED Light features engineered lens optics; red models can
function as identification light and third brake light; Clear, Green and Blue colors are ideal
for lighting or decorating interior and exterior of boats, RV and other vehicles
* Black rubber gasket included for mounting to all surfaces
* Two bare end wires of 6
(15mm) length, separate lead wire and ground wire
* Super flux (P4) type LED, super bright
* LED circuitry is completely potted by epoxy to ensure permanent and water proof seal,
Submersible!

*Red models meetDOT FMVSS 108/SAErequirementfor indentification and 3rd brake light
* Rated for 12V, tested to 13.8V
* Also available in multi-voltage 10~30V operating range, or 24V

SF No. Size Lighting Color Lens Color Nos. of LEDs Current Draw (mA) at 13.8V

SFA41229-1 4'' Red Clear           6 100
SFA41229-2 4'' Amber Clear         6 100
SFA41229-3 4'' Clear Clear         6 40
SFA41229-4 4'' Green Clear         6 40
SFA41229-5 4'' Blue Clear          6 40
SFA41229-6 4'' Red / Red Red       6 100
SFA41229-7 4'' Amber / Amber Amber 6 100
SFA41230-1 6'' Red Clear           12 200
SFA41230-2 6'' Amber Clear         12 200
SFA41230-3 6'' Clear Clear         12 80
SFA41230-4 6'' Green Clear         12 80
SFA41230-5 6'' Blue Clear          12 80
SFA41230-6 6'' Red / Red Red       12 200
SFA41230-7 6'' Amber / Amber Amber 12 200
SFA41231-1 8'' Red Clear           18 300
SFA41231-2 8'' Amber Clear         18 300
SFA41231-3 8'' Clear Clear         18 120
SFA41231-4 8'' Green Clear         18 120
SFA41231-5 8'' Blue Clear          18 80
SFA41231-6 8'' Red / Red Red       18 300
SFA41231-7 8'' Amber / Amber Amber 18 300
