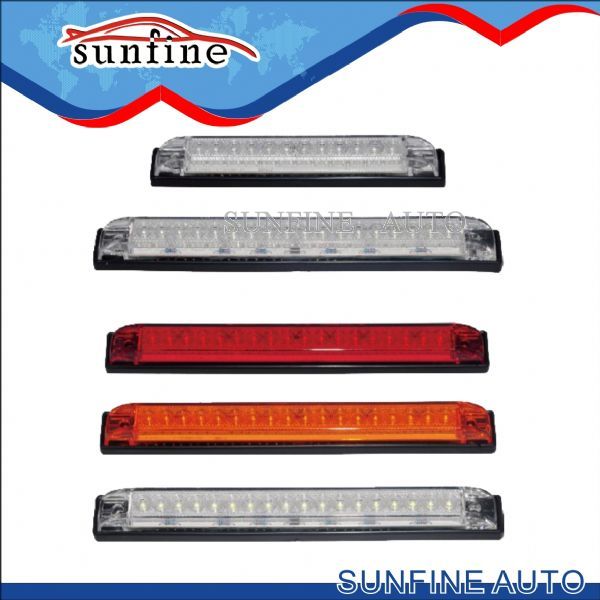

Slim Line LED Utility Light

4''/6''&8'' Slim Line LED Utility Light

* This surface mount Slim Line LED Light features engineered lens optics; red models can
function as identification light and third brake light; Clear, Green and Blue colors are ideal
for lighting or decorating interior and exterior of boats, RV and other vehicles
* Black rubber gasket included for mounting to all surfaces
* Two bare end wires of 6
(15mm) length, separate lead wire and ground wire
* Super flux (P4) type LED, super bright
* LED circuitry is completely potted by epoxy to ensure permanent and water proof seal,
Submersible!

*Red models meetDOT FMVSS 108/SAErequirementfor indentification and 3rd brake light
* Rated for 12V, tested to 13.8V
* Also available in multi-voltage 10~30V operating range, or 24V

SF No. Size Lighting Color Lens Color Nos. of LEDs Current Draw (mA) at 13.8V

SFA41229-1 4'' Red Clear           6 100
SFA41229-2 4'' Amber Clear         6 100
SFA41229-3 4'' Clear Clear         6 40
SFA41229-4 4'' Green Clear         6 40
SFA41229-5 4'' Blue Clear          6 40
SFA41229-6 4'' Red / Red Red       6 100
SFA41229-7 4'' Amber / Amber Amber 6 100
SFA41230-1 6'' Red Clear           12 200
SFA41230-2 6'' Amber Clear         12 200
SFA41230-3 6'' Clear Clear         12 80
SFA41230-4 6'' Green Clear         12 80
SFA41230-5 6'' Blue Clear          12 80
SFA41230-6 6'' Red / Red Red       12 200
SFA41230-7 6'' Amber / Amber Amber 12 200
SFA41231-1 8'' Red Clear           18 300
SFA41231-2 8'' Amber Clear         18 300
SFA41231-3 8'' Clear Clear         18 120
SFA41231-4 8'' Green Clear         18 120
SFA41231-5 8'' Blue Clear          18 80
SFA41231-6 8'' Red / Red Red       18 300
SFA41231-7 8'' Amber / Amber Amber 18 300
