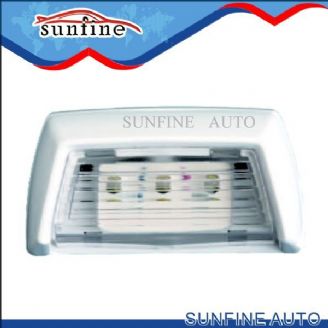

LED Courtesy Light, 3.5" x1.8"
* Clear PC lens and white ABS housing
* Circuit board completely sealed in epoxy to resist water, corrosion and vibration
* Low current draw, super long life span up to 100,000 hours
* Rated for 12V, tested to 13.8V
* Also available in 24V version (special order only minimum may apply)

SF No.    Lighting   Input   No. of  LED Type  Wave Length   Current Draw
           Color      Voltage  LEDs            or Color Temp    at 13.8V
SFA40167-1 Cool White 12 V 3 5 mm 7,000~8,000K 20 mA
SFA40167-2 Red 12 V 3 5 mm 625nm 20 mA
SFA40167-3 Amber 12 V 3 5 mm 595nm 20 mA
SFA40167-4 Green 12 V 3 5 mm 525nm 20 mA
SFA40167-5 Blue 12 V 3 5 mm 470nm 20 mA

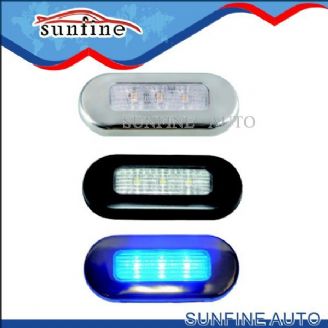

LED Oblong Courtesy Light, 3" x1-1/4"
* Clear PC lens, stainless steel rim in highly polished, satin and TiN plated golden finishes.
* The engineered lens optics directs light downward to avoid the light from shining into the eyes.
* Circuit board completely sealed in epoxy to resist water, corrosion and vibration
* Available in Red, Amber and Green colors by special order
* Super long life span up to 100,000hours
* Rated for 12V, tested to 13.8V

        Finish  Lighting Input No. of LED Current Draw
SF No.              Color Voltage LEDs Type at 13.8V

SFA40168-1 Polished Warm White 12V 3 SMD 20 mA
SFA40168-2 Polished Blue       12V 3 SMD 20 mA
SFA40168-7 Polished Warm White 12~24V 3 SMD 20 mA
SFA40168-8 Polished Blue       12~24V 3 SMD 20 mA
SFA40168-9 Black Warm White    12V 3 SMD 20 mA
SFA40168-10 Black Blue         12V 3 SMD 20 mA
SFA40168-11 Black Warm White   12~24V 3 SMD 20 mA
SFA40168-12 Black Blue         12~24V 3 SMD 20 mA

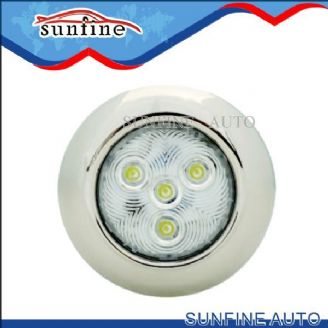

3" LED Puck Light
* Highly polished 304 stainless steel housing, optional TIN (Titanium Nitrite) plated golden finish available.
Ideal for interior use in Boat, RV and Caravan as ceiling light, courtesy light other applications
* Clear PC lens, engineered lens optics provides a uniform and wide angle light beam illuminating from LEDs
* 4 LEDs of super bright 0.5W type in cozy warm white lighting color, also available in super flux (P4) LEDs in
cool white for less brightness; LED features super long life span up to 50,000hours
* Color Temperature: Warm White=4,000~4,500K, Cool White=7,000~8,000K
* Circuit board completely sealed in epoxy to resist water, corrosion and vibration
* Rated for 12V, tested to 13.8V

        Finish                  Input   Light      No. of   LED Current Draw    Lumen
SF No.                         Voltage   color     LEDs   Type   at 13.8V     Output

SFA40123-1 Highly Polished SS      12 V Warm White 4 0.5 W 160 mA 80 lm
SFA40123-2 TIN Plated Golden       12 V Warm White 4 0.5 W 160 mA 80 lm
SFA40123-3 Polished SS Multi-      12~24 V Warm White 4 0.5 W 220 mA 120 lm
SFA40123-4 TIN Plated Multi-voltage12~24 V Warm White 4 0.5 W 220 mA 120 lm
SFA40123-5 Highly Polished         12 V Cool White 4 P4 40 mA 20 lm
SFA40123-6 TIN Plated Golden       12 V Cool White 4 P4 40 mA 20 lm

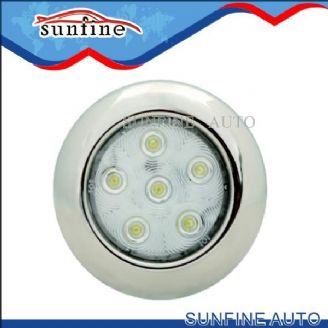

4" LED Puck Light
* Highly polished 304 stainless steel housing, optional TIN (Titanium Nitrite) plated golden finish
available. Ideal for interior use in Boat, RV and Caravan as ceiling light and other applications
* Clear PC lens, engineered lens optics provides a uniform and wide angle ( 120 )light
beam illuminating from LEDs
* 6 LEDs of super bright 0.5W type in cozy warm white lighting color, also available in super flux
(P4) LEDs in cool white for less brightness; LED features super long life span up to 50,000hours
* Color Temperature: Warm White=4,000~4,500K, Cool White=7,000~8,000K
* Circuit board completely sealed in epoxy to resist water, corrosion and vibration
* Rated for 12V, tested to 13.8V

           Finish              Input   Lighting    No. of LED Current Draw Lumen
SF No.                          Voltage Color        LEDs Type at 13.8V      Output

SFA40127-1 Highly Polished SS    12 V Warm White 6 0.5 W 160 mA 120 lm
SFA40127-2 TIN Plated Golden     12 V Warm White 6 0.5 W 160 mA 120 lm
SFA40127-3 Polished SS Multi-voltage 12~24 V Warm White 6 0.5 W 220 mA 180 lm
SFA40127-4 TIN Plated Multi-voltage 12~24 V Warm White 6 0.5 W 220 mA 180 lm
SFA40127-5 Highly Polished       12 V Cool White 6 P4 40 mA 30 lm
SFA40127-6 TIN Plated Golden     12 V Cool White 6 P4 40 mA 30 lm

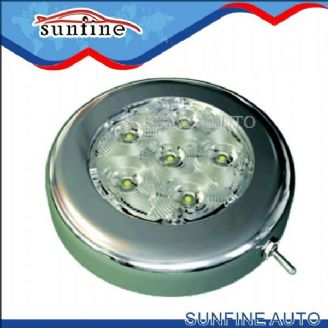

LED Puck Light with Switch
Highly polished 304 stainless steel housing, optional TiN (Titanium Nitrite) plated golden finish available.
Ideal for interior use in Boat, RV and Caravan as ceiling light and other applications
* Clear PC lens, engineered lens optics provides a uniform and wide angle ( 120 )light beam illuminating from LEDs
* Choice of rocker switch or toggle switch

*6LEDs of super bright 0.5W type in cozy warm white lighting color,LED features super long lifr span up to 50,000hours

* Color Temperature: Warm White=4,000~4,500K
* Circuit board coated with conformal coating to resist moisture, corrosion and vibration.
* Rated for 12V t,ested to 13 8V

SF No.     Finish     Switch   Input   Lighting  No. of  LED  Current Dr aw Lumen

                       Type     Voltage  Color    LEDs    Type  at 13.8V     Output

SFA40131-1 Highly Polished SS       Toggle 12 V WarmWhite 6 0.5 W 220 m A 180 lm
SFA40131-2 TiN Plated Golden        Toggle 12 V WarmWhite 6 0.5 W 220 m A 180 lm
SFA40131-3 Polished SS Multi-voltageToggle 12~24 V WarmWhite 6 0.5 W 220 m A 180 lm
SFA40131-4 TiN Plated Multi-voltage Toggle 12~24 V WarmWhite 6 0.5 W 220 m A 180 lm
SFA40132-1 Highly Polished SS       Rocker 12 V WarmWhite 6 0.5 W 220 m A 180 lm
SFA40132-2 TiN Plated Golden        Rocker 12 V WarmWhite 6 0.5 W 220 m A 180 lm
SFA40132-3 Polished SS Multi-voltageRocker 12~24 V WarmWhite 6 0.5 W 220 m A 180 lm
SFA40132-4 TiN Plated Multi-voltage Rocker 12~24 V Warm 6 0.5 W 220 m A 180 lm

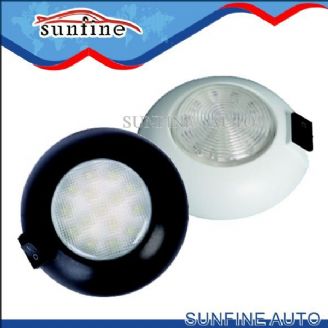

4"LED Surface Mount Light

*Newly designed LED Surface Mount Accent Light;ideal fro interior ues in boat,RVabd otherapp;ication

* Clear PC Lens featured with StarView lens pattern is uniquely designed to vastly distribute the
lighting illuminated from white LEDs to a wide beam angle of no less than 120
* White plastic housing added with UV inhibitor to resist color fading, rocker switch, housing also
available in Black and Silver colors by special order
* Circuit board completely sealed in epoxy to resist water, corrosion and vibration
* Lighting color by LEDs available in single color Warm White or Cool White, as well as Nav.
version (red night vision) of White/Red LED configuration
* Color Temperature: Warm White=4,000~4,500K, Cool White=7,000~8,000K
* Super flux (P4) type or 5mm LEDs, super bright, long life span up to 100,000hours
* Rated for 12V tested to 13 8V

SF.NO.  Finish  Input  Lighting No. of LED Current Luminous CCT.

                Voltage Color   LEDs  Type  Draw at Intensity

SFA40137-11 White 12 V Cool White 18 SMD 120 mA 108 lm ~7000K
SFA40137-12 Black 12 V Cool White 18 SMD 120 mA 108 lm ~7000K
SFA40137-21 White 12 V Netural White 18 SMD 120 mA 108 lm ~4200K
SFA40137-22 Black 12 V Netural White 18 SMD 120 mA 108 lm ~4200K
SFA40137-31 White 12 V CoolWhite/Red12W/9R SMD 80/60 mA 72/15 lm CW/RED
SFA40137-32 Black 12 VCoolWhite/Red 12W/9R SMD 80/60 mA 72/15 lm CW/RED
SFA40136-1 White 12 V Cool White 15 P4 100 mA 90 lm ~7000K
SFA40143-1 White 12 V Netural White 15 P4 100 mA 90 lm ~4200K
SFA40143-2 White 12 VCoolWhite/Red 9W/6R P4 60/100 mA 60/30 lm CW/RED

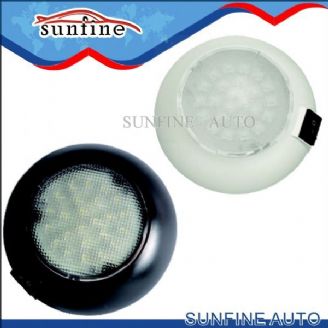

4.5"LED Surface Mount Accent Light
* New style LED Surface Mount Accent Light; ideal for interior use in Boat, RV and other applications
* Clear PC Lens featured with StarView lens pattern is uniquely designed to vastly distribute the
lighting illuminated from white LEDs to a wide beam angle of no less than 120
* White plastic housing added with UV inhibitor to resist color fading, rocker switch,
housing also available in Black and Silver colors
* Circuit board coated with conformal coating to resist moisture, corrosion and vibration
* Concealed fastening holes, install easily
* Lighting color by LEDs available in single color Warm White or Cool White, as well as Nav. Version
(red night vision) of White/Red LED configuration
* Color Temperature: Warm White=4,000~4,500K, Cool White=7,000~8,000K
* Super flux (P4) type LEDs, super bright, long life span up to 100,000hours
* Rated for 12V, tested to 13.8V
* Also available in 24V version (special order only
- minimum may apply

SF.NO.  Finish   Input   Lighting No. of LED Current Luminous CCT

                 Voltage  Color   LEDs   Type Draw atIntensity

SFA40144-1 White 12 V Cool White 24 P4 160 mA 120 lm ~7000K
SFA40144-2 Black 12 V Cool White 24 P4 160 mA 120 lm ~7000K
SFA40144-3 Silver 12 V Cool White 24 P4 160 mA 120 lm ~7000K
SFA40144-10 White 12 V Netural White 24 SMD 160 mA 120 lm ~4200K
SFA40144-11 Black 12 V Netural White 24 SMD 160 mA 120 lm ~4200K
SFA40144-12 Silver 12 V Netural White 24 SMD 160 mA 120 lm ~4200K
SFA40144-7 White 12 VCoolWhite/Red 18W/9R P4 120/150 mA 90/45 lm CW/RED
SFA40144-8 Black 12 VCoolWhite/Red18W/9R P4 120/150 mA 90/45 lm CW/RED
SFA40144-9 Silver 12 VCoolWhite/Red18W/9R P4 120/150 mA 90/45 lm CW/RED
