4'' SURFACE MOUNT LIGHT

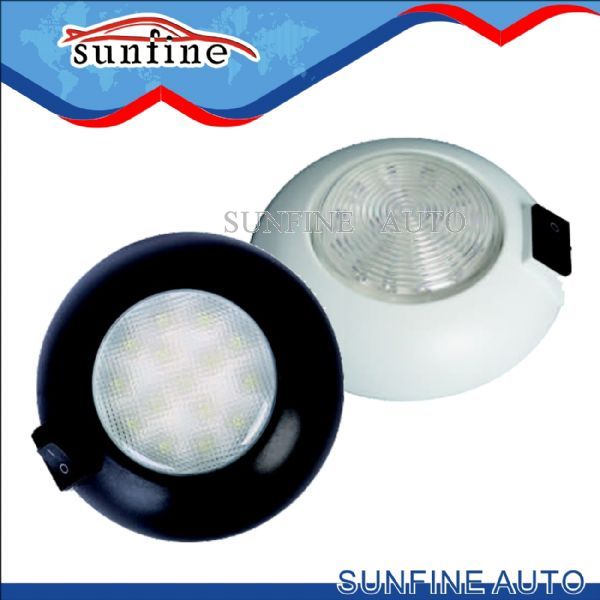

4"LED Surface Mount Light

*Newly designed LED Surface Mount Accent Light;ideal fro interior ues in boat,RVabd otherapp;ication

* Clear PC Lens featured with StarView lens pattern is uniquely designed to vastly distribute the
lighting illuminated from white LEDs to a wide beam angle of no less than 120
* White plastic housing added with UV inhibitor to resist color fading, rocker switch, housing also
available in Black and Silver colors by special order
* Circuit board completely sealed in epoxy to resist water, corrosion and vibration
* Lighting color by LEDs available in single color Warm White or Cool White, as well as Nav.
version (red night vision) of White/Red LED configuration
* Color Temperature: Warm White=4,000~4,500K, Cool White=7,000~8,000K
* Super flux (P4) type or 5mm LEDs, super bright, long life span up to 100,000hours
* Rated for 12V tested to 13 8V

SF.NO.  Finish  Input  Lighting No. of LED Current Luminous CCT.

                Voltage Color   LEDs  Type  Draw at Intensity

SFA40137-11 White 12 V Cool White 18 SMD 120 mA 108 lm ~7000K
SFA40137-12 Black 12 V Cool White 18 SMD 120 mA 108 lm ~7000K
SFA40137-21 White 12 V Netural White 18 SMD 120 mA 108 lm ~4200K
SFA40137-22 Black 12 V Netural White 18 SMD 120 mA 108 lm ~4200K
SFA40137-31 White 12 V CoolWhite/Red12W/9R SMD 80/60 mA 72/15 lm CW/RED
SFA40137-32 Black 12 VCoolWhite/Red 12W/9R SMD 80/60 mA 72/15 lm CW/RED
SFA40136-1 White 12 V Cool White 15 P4 100 mA 90 lm ~7000K
SFA40143-1 White 12 V Netural White 15 P4 100 mA 90 lm ~4200K
SFA40143-2 White 12 VCoolWhite/Red 9W/6R P4 60/100 mA 60/30 lm CW/RED
