Product Desprtion:

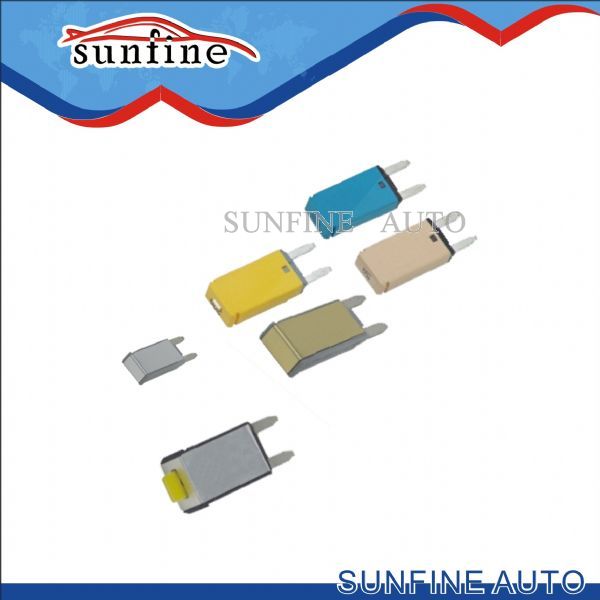

   Automotive Circuit Breakers

* calibraion at25:100% hold, 135% trip(percent of rating)

* max interrupting capacity:150A/14V DC(5-10 versions); 225A/14V DC(15A version);300A/14V DC(20A version);455A/14V DC(25A-30A version)

* termination:compatible with 280 type fuse block using 0.32"(8.1mm)centerlinespacing

* compliance: SAE J553 / SAE J1171(ignition protected)

NO. SPEICIFICATION DESCRIPTION QUANTITY PRICES BASKET
SFA50655-1 Max Current&Volt Rating:5-30A/14V DC
Reset Type: Auto Reset		 Dimensions/mm: 25*10*17.8 Sign In or Join Free
SFA50655-2 Max Current&Volt Rating:5-30A/14V DC

Reset Type: Modified		 Dimensions/mm: 25*10*17.8 Sign In or Join Free
SFA50655-3 Max Current&Volt Rating:5-30A/28V DC

Reset Type: Manual		 Dimensions/mm: 25*10*17.8 Sign In or Join Free
SFA50655-4 Max Current&Volt Rating:5-30A/14V DC

Reset Type: Auto Reset		 Dimensions/mm: 19*6.5*31.5 Sign In or Join Free
SFA50655-5 Max Current&Volt Rating:5-30A/14V DC

Reset Type: Modified		 Dimensions/mm: 19*6.5*31.5 Sign In or Join Free
SFA50655-6 Max Current&Volt Rating:5-30A/28V DC

Reset Type: Manual		 Dimensions/mm: 19*6.5*31.5 Sign In or Join Free
