Properties:

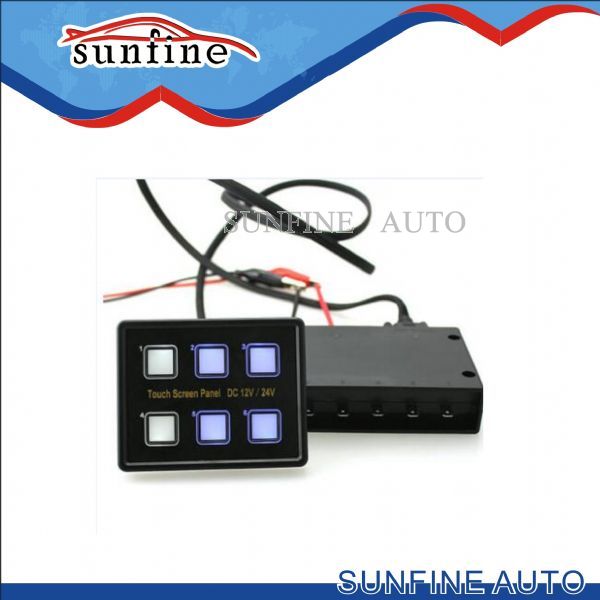

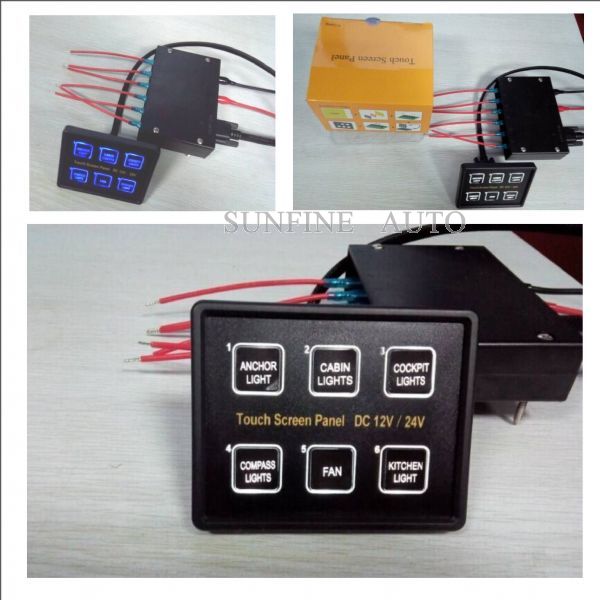

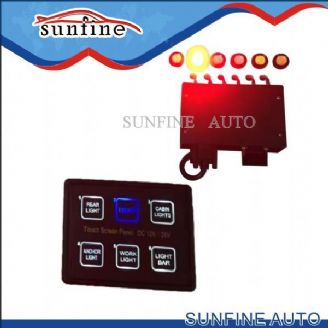

This product is compososed of a capacitive touch screen and a output circuit control
It's connection control circuitry consists of a 15-pin VGA transmission cable.
Capacitive Touch Screen:
10 6 sensing capacitors
20 1*15-pin VGA socket
30 6 color backlit LED board
40 function instruction lable
50 product ueses silicone rubber internally for encapsulation
60 1*3M double side adhesive tape used
70 dimensions:80*100*10mm
80 mounting hole dimensions:20*50mm
Control Box:
10 6*PPTC
20 1*15-pin VGA socket
30 2*power input terminals
40 6*negative output terminals
50 ultrasonically welded enclosure box
60 4*fixing screws
70 dimensions:85*135*30mm
80 input:12V / 24V DC
90 output: 12V/10A 24V/6A DC
100 reverse polarity protection,overvoltage protection, overcurrent protection
| NO. | SPEICIFICATION | DESCRIPTION | QUANTITY | PRICES | BASKET |
