Product Desprtion:

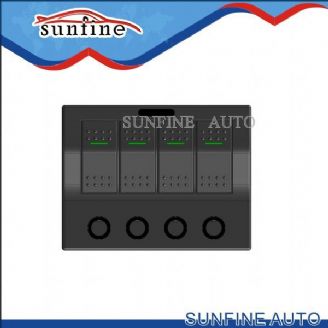

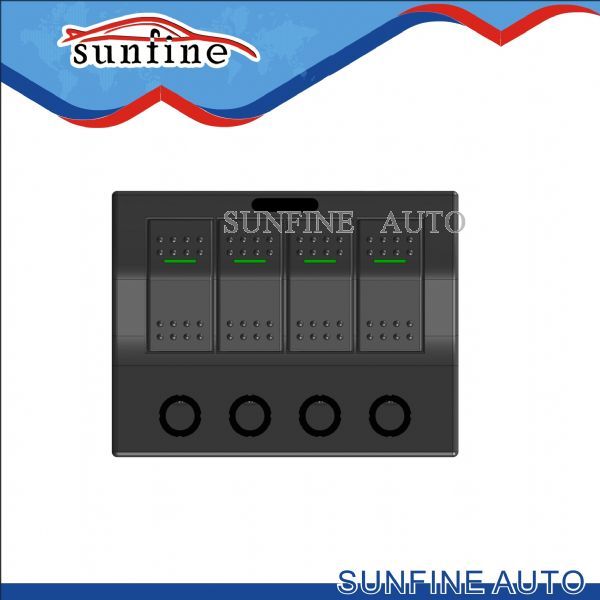

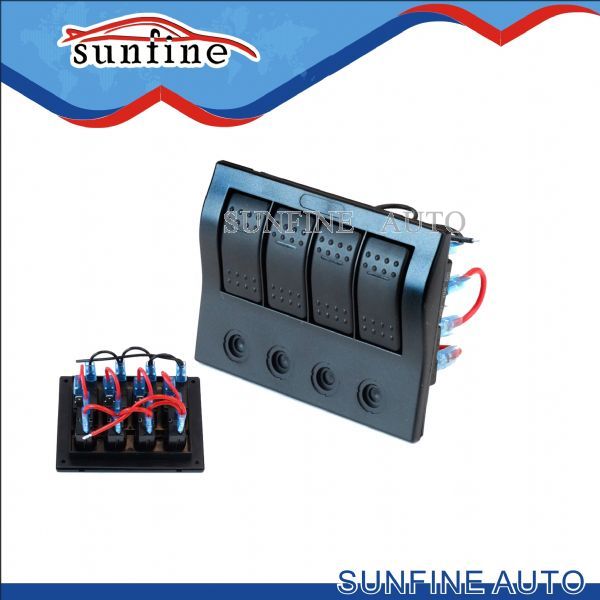

Rocker Switch Panel 12V/24V  Waterproof IP68   1pcs* SF50706-2-3P (ON)-OFF, SPST, 1 LED

With Accessories:



Rocker Switch (SF50706-1-3P) ON-OFF

Stainless Steel Screw ,

Nitrile Rubber Gasket 2.0 mm ,

60 Indication Label,

Electrical Wiring    UL/1015.

NO. SPEICIFICATION DESCRIPTION QUANTITY PRICES BASKET
SFA50745-4 4*Switch

Fuse Holders: 5A*2, 10A*1, 15A*1		 Panel Width:130mm/5.12inch, Height:100mm/3.94inch, Hole Width:107mm/4.21inch, Height:82mm/3.23inch Sign In or Join Free
SFA50745-6 6*Switch

Fuse Holders: 5A*3, 10A*2, 15A*1		 Panel Width:182mm/7.17inch, Height:100mm/3.94inch, Hole Width:160mm/6.3inch, Height:82mm/3.23inch Sign In or Join Free
SFA50745-8 8*Switch

Fuse Holders: 5A*4, 10A*2, 15A*2		 Panel Width:235mm/9.25inch, Height:100mm/3.94inch, Hole Width:212mm/8.35inch, Height:82mm/3.23inch Sign In or Join Free
