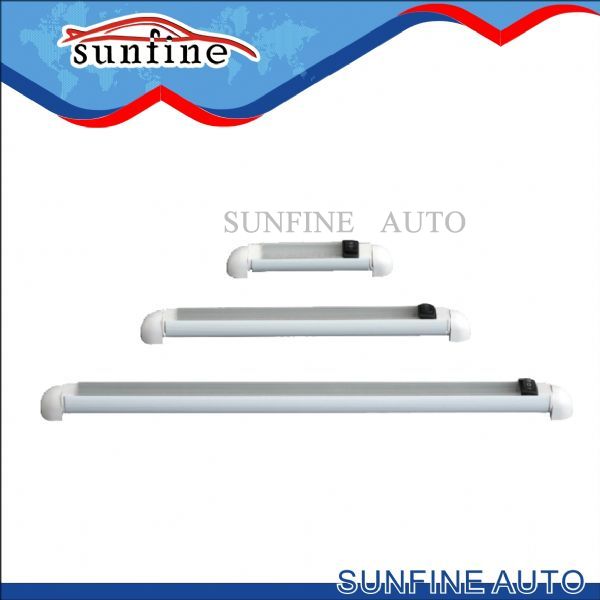

LED Rail Light

LED Rail Light
* This series of the lights feature rotating function to adjust the light to any desired direction, reinforced plastic
end mount tightly holds the light in place
* Aluminum extrusion rail, finishes available in powder coated White, painted Black and Silver
* Frosted plastic lens with featured lens pattern to enhance uniform lighting distribution
* Circuit board coated with conformal coating to resist moisture, corrosion and vibration
* Lighting color available in Cool White, optional Warm White color or Nav. version (red night vision) of
White/Red LED configuration available by special order
* Color Temperature: Warm White=4,000~4,500K, Cool White=7,000~8,000K
* Super bright 5mm LED, long life span up to 100,000hours
* Rated for 12V, tested to 13.8V
* Also available in 24V version (special order only
minimum may apply)

SF No.LengthFinishInputLight ColorNo. ofLEDCurrent DrawLuminous

       Inch mm     Voltage       LEDs Type at 13.8V     Intensity

SFA41240-1 6 150  White  12 V Cool White 12 5 mm 80 mA 48 lm
SFA41240-2 6 150  Black  12 V Cool White 12 5 mm 80 mA 48 lm
SFA41240-3 6 150  Silver 12 V Cool White 12 5 mm 80 mA 48 lm
SFA41241-1 12 300 White  12 V Cool White 24 5 mm 160 mA 96 lm
SFA41241-2 12 300 Black  12 V Cool White 24 5 mm 160 mA 96 lm
SFA41241-3 12 300 Silver 12 V Cool White 24 5 mm 160 mA 96 lm
SFA41242-1 18 450 White  12 V Cool White 36 5 mm 240 mA 144 lm
SFA41242-2 18 450 Black  12 V Cool White 36 5 mm 240 mA 144 lm
SFA41242-3 18 450 Silver 12 V Cool White 36 5 mm 240 mA 144 lm
