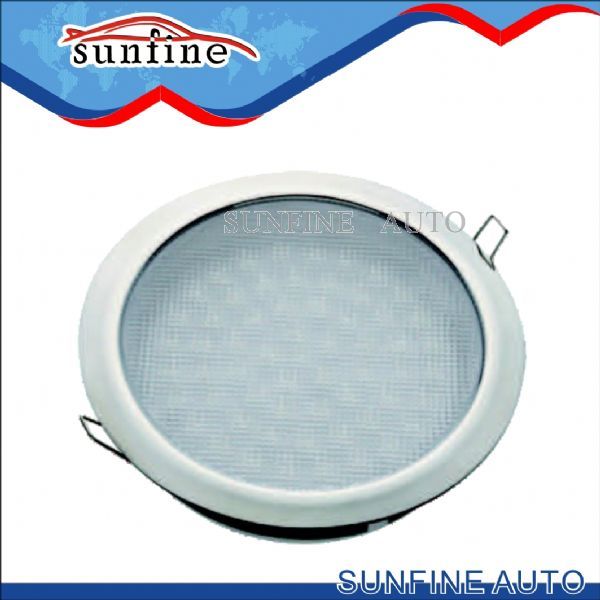

6" Down Light Recessed MounT

6"LED Down Light Recessed Mount, Low Profile
* Newly designed Low Profile LED Down light is particularly ideal for applications where the depth of
cut-out hole is limited, great for vehicle and boat interior use.
* Highly polished 304 stainless steel, TiN (Titanium Nitrite) plated over brass, or white powder coated aluminum finishes.
* Clear PC Lens featured with StarView lens pattern is uniquely designed to vastly distribute the lighting
illuminated from white LEDs to a wide beam angle of no less than 120
* Circuit board coated with conformal coating to resist moisture, corrosion and vibration
* Super flux (P4) type LEDs, super bright, long life span up to 100,000hours
* Lighting color available in Warm White, Color Temperature: 4,000~4,500K
* Rated for 12V, tested to 13.8V

SFNo.FinishInputLightingColorNo. of LEDs LED Type Current Draw at Luminous Intensity

SFA41223-1 Stainless  12 V   Warm White    60 P4      360 mA 270 lm
SFA41223-3 White Alum 12 V   Warm White    60 P4      360 mA 270 lm
SFA41223-4 Stainless  12 V   Netural White 60 SMD2835 320 mA 360 lm
SFA41223-5 White Alum 12 V   Netural White 60 SMD2835 320 mA 360 lm
SFA41223-6 Stainless  10~30V Netural White 60 SMD2835 320 mA 360 lm
SFA41223-7 White Alum 10~30V Netural White 60 SMD2835 320 mA 360 lm
