4-1/2"

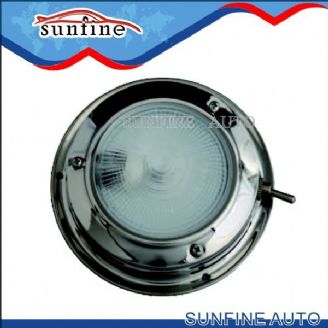

Dome Light Xenon
* Highly polished 304 stainless steel, brass lacquered, TiN plated (golden color) over brass, or white powder coated
* Heavy duty clear Fresnel patterned glass lens is designed to flood desired area
* 2 way toggle switch for easy operation
* G4 Xenon bulb 10W 12V; Life time no less than 2,000 hours
SF No. Base Diameter Finish            Bulb Type Power Consumption
SFA40187-1 4-1/2 TiN Plated, Golden color G4, Xenon, 12V 10W 10 W
SFA40187-2 4-1/2 Stainless Steel          G4, Xenon, 12V 10W 10 W
SFA40187-3 4-1/2 Brass Lacquered          G4, Xenon, 12V 10W 10 W
SFA40187-4 4-1/2 White Powder Coated      G4, Xenon, 12V 10W 10 W

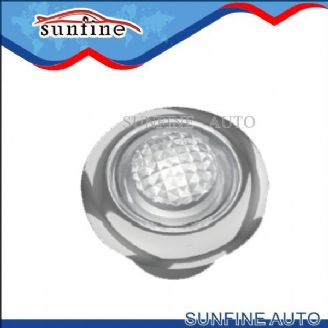

3/4 Mini Round LED Courtesy Light
Clear PC lens, engineered lens optics uniformly distributes the light from LED at a
wide viewing angle
304 stainless steel ring, available in highly polished or black finishes
Compact size, easy for installation by drilling a 3/4 (19mm) cut-out hole and
pushing in, ideal as a courtesy anywhere and a utility for livewells, lockers and
compartments
Circuit board completely sealed in epoxy to resist water, corrosion and vibration
IP68 rated
(1) SMD2835 LED, low current draw
Rated for 12V, tested to 13.8V. Also available in 24V version by special order only

SF NO. DescirptionInputVoltageNos. ofLEDsLEDType CCTLuminousFluxCurrent Drawat 13.8A

SFA41504-1 Neutral White 12 V 1 SMD ~ 4,200 K 10 lm 0.02 A
SFA41504-2 Blue 12 V 1 SMD 0.02 A
SFA41504-3 Green 12 V 1 SMD 0.02 A
SFA41504-4 Red 12 V 1 SMD 0.02 A

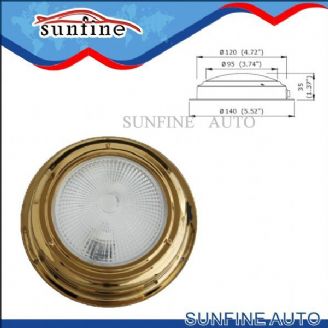

5-1/2"& 7"Dome Light Xenon
* Highly polished 304 stainless steel, brass lacquered, TiN plated (golden color) over brass, or white powder coated
* Heavy duty clear Fresnel patterned glass lens is designed to flood desired area
* 3 way rocker switch configured for High-Low lighting (High=2 bulbs ON, Low=1 bulb ON), Nav/Dome version is also available
* 2 of G4 Xenon bulb, each 10W at 12V. Life expectancy no less than 2,000 hours

SF No.     Base Dia.    Finish      Version   Bulb Type

SFA40188-1 5-1/2” TiN Plated High-Low 2X G4, Xenon, 12V 10W
SFA40188-2 5-1/2” Stainless Steel High-Low 2X G4, Xenon, 12V 10W
SFA40188-3 5-1/ 2” Brass Lacquered High-Low 2X G4, Xenon, 12V 10W
SFA40188-4 5-1/ 2” White Powder High-Low 2X G4, Xenon, 12V 10W
SFA40188-5 5-1/ 2” TiN Plated Nav./Dome 2X G4, Xenon, 1 White/1 Red=10W/10W
SFA40188-6 5-1/ 2” Stainless Steel Nav./Dome 2X G4, Xenon, 1 White/1 Red=10W/10W
SFA40188-7 5-1/ 2” Brass Lacquered Nav./Dome 2X G4, Xenon, 1 White/1 Red=10W/10W
SFA40188-8 5-1/ 2” White Powder Nav./Dome 2X G4, Xenon, 1 White/1 Red=10W/10W
SFA40190-1 7”      TiN Plated High-Low 2X G4, Xenon, 12V 10W
SFA40190-2 7”      Stainless Steel High-Low 2X G4, Xenon, 12V 10W
SFA40190-3 7”      Brass Lacquered High-Low 2X G4, Xenon, 12V 10W
SFA40190-4 7”      White Powder High-Low 2X G4, Xenon, 12V 10W
SFA40190-5 7”      TiN Plated Nav./Dome 2X G4, Xenon, 1 White/1 Red=10W/10W
SFA40190-6 7”      Stainless Steel Nav./Dome 2X G4, Xenon, 1 White/1 Red=10W/10W
SFA40190-7 7”      Brass Lacquered Nav./Dome 2X G4, Xenon, 1 White/1 Red=10W/10W
SFA40190-8 7        White Powder Nav./Dome 2X G4, Xenon, 1 White/1 Red=10W/10W

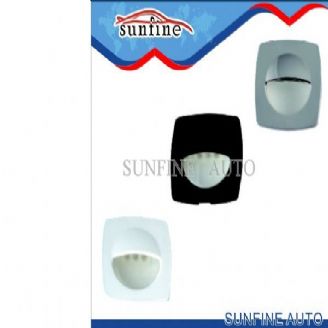

LED Square Courtesy Light, 2.2" x2.2"
* Frosted PC lens, ABS top plate available in finishes of Black, White or Chrome Plated, white plastic housing
* Circuit board completely sealed in epoxy to resist water, corrosion and vibration
* Low current draw, super long life span up to 100,000 hours
* Rated for 12V, tested to 13.8V
* Also available in 24V version (special order only minimum may apply)

Black Finish White Finish Chromed Finish Lighting Input No. of  LED     Current Draw
SF No.       SF No.  SF No.               Color Voltage  LEDs   Type    at 13.8V

SFA41161-101   SFA41161-102 SFA41161-103 CoolWhite 12 V 3 5 mm 20 mA
SFA41161-201   SFA41161-202 SFA41161-203 Red       12 V 3 5 mm 20 mA
SFA41161-301   SFA41161-302 SFA41161-303 Amber     12 V 3 5 mm 20 mA
SFA41161-401   SFA41161-402 SFA41161-403 Green     12 V 3 5 mm 20 mA
SFA41161-501   SFA41161-502 SFA41161-503 Blue      12 V 3 5 mm 20 mA

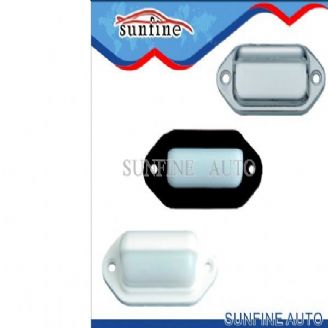

LED Companion Way Light, 2.6" x1.3"
* Opal PClens, ABS housing available in finishes of Black, White or Chrome Plated
* Circuit board completely sealed in epoxy to resist water, corrosion and vibration
* Low current draw, super long life span up to 100,000 hours
* Rated for 12V, tested to 13.8V
* Also available in 24V version (special order only minimum may apply)

Black Finish	White Finish	Chromed Finish	Lighting	Input	No. of	LED	Current Draw
SF No.	SF No.	SF No.	Color	Voltage	LEDs	Type	at 13.8V

SFA40162-101 SFA40162-102 SFA40162-103         Cool White 12 V 2 5 mm 20 mA
SFA40162-201 SFA40162-202 SFA40162-203            Red     12 V 2 5 mm 20 mA
SFA40162-301 SFA40162-302 SFA40162-303            Amber   12 V 2 5 mm 20 mA
SFA40162-401 SFA40162-402 SFA40162-403            Green   12 V 2 5 mm 20 mA
SFA40162-501 SFA40162-502 SFA40162-503            Blue    12 V 2 5 mm 20 mA

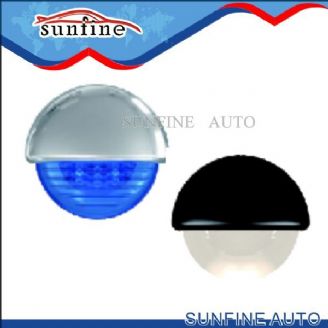

2.25" LED Half Round Courtesy Light
* Clear PC lens, plastic cover in Chrome Plated, Black or White finishes. The engineered
lens optics directs light downward to avoid the light from shining into the eyes.
* Circuit board completely sealed in epoxy to resist water, corrosion and vibration
* Lighting color available in Warm White and Blue colors; other colors available.
* Super long life span up to 100,000hours
* Rated for 12V, tested to 13.8V

	Finish		Lighting	Input	No. of	LED	Current Draw
SF No.			Color	Voltage	LEDs	Type	at 13.8V

SFA40164-1 Chrome Plated                  Warm White 12V 3 SMD 20 mA
SFA40164-2 Chrome Plated                        Blue 12V 3 SMD 20 mA
SFA40164-3 Black                          Warm White 12V 3 SMD 20 mA
SFA40164-4 Black                                Blue 12V 3 SMD 20 mA
SFA40164-5 White                          Warm White 12V 3 SMD 20 mA
SFA40164-6 White                                Blue 12V 3 SMD 20 mA

LED Courtesy Light, 3.5" x1.8"
* Clear PC lens and white ABS housing
* Circuit board completely sealed in epoxy to resist water, corrosion and vibration
* Low current draw, super long life span up to 100,000 hours
* Rated for 12V, tested to 13.8V
* Also available in 24V version (special order only minimum may apply)

SF No.    Lighting   Input   No. of  LED Type  Wave Length   Current Draw
           Color      Voltage  LEDs            or Color Temp    at 13.8V
SFA40167-1 Cool White 12 V 3 5 mm 7,000~8,000K 20 mA
SFA40167-2 Red 12 V 3 5 mm 625nm 20 mA
SFA40167-3 Amber 12 V 3 5 mm 595nm 20 mA
SFA40167-4 Green 12 V 3 5 mm 525nm 20 mA
SFA40167-5 Blue 12 V 3 5 mm 470nm 20 mA

LED Oblong Courtesy Light, 3" x1-1/4"
* Clear PC lens, stainless steel rim in highly polished, satin and TiN plated golden finishes.
* The engineered lens optics directs light downward to avoid the light from shining into the eyes.
* Circuit board completely sealed in epoxy to resist water, corrosion and vibration
* Available in Red, Amber and Green colors by special order
* Super long life span up to 100,000hours
* Rated for 12V, tested to 13.8V

        Finish  Lighting Input No. of LED Current Draw
SF No.              Color Voltage LEDs Type at 13.8V

SFA40168-1 Polished Warm White 12V 3 SMD 20 mA
SFA40168-2 Polished Blue       12V 3 SMD 20 mA
SFA40168-7 Polished Warm White 12~24V 3 SMD 20 mA
SFA40168-8 Polished Blue       12~24V 3 SMD 20 mA
SFA40168-9 Black Warm White    12V 3 SMD 20 mA
SFA40168-10 Black Blue         12V 3 SMD 20 mA
SFA40168-11 Black Warm White   12~24V 3 SMD 20 mA
SFA40168-12 Black Blue         12~24V 3 SMD 20 mA

3" LED Puck Light
* Highly polished 304 stainless steel housing, optional TIN (Titanium Nitrite) plated golden finish available.
Ideal for interior use in Boat, RV and Caravan as ceiling light, courtesy light other applications
* Clear PC lens, engineered lens optics provides a uniform and wide angle light beam illuminating from LEDs
* 4 LEDs of super bright 0.5W type in cozy warm white lighting color, also available in super flux (P4) LEDs in
cool white for less brightness; LED features super long life span up to 50,000hours
* Color Temperature: Warm White=4,000~4,500K, Cool White=7,000~8,000K
* Circuit board completely sealed in epoxy to resist water, corrosion and vibration
* Rated for 12V, tested to 13.8V

        Finish                  Input   Light      No. of   LED Current Draw    Lumen
SF No.                         Voltage   color     LEDs   Type   at 13.8V     Output

SFA40123-1 Highly Polished SS      12 V Warm White 4 0.5 W 160 mA 80 lm
SFA40123-2 TIN Plated Golden       12 V Warm White 4 0.5 W 160 mA 80 lm
SFA40123-3 Polished SS Multi-      12~24 V Warm White 4 0.5 W 220 mA 120 lm
SFA40123-4 TIN Plated Multi-voltage12~24 V Warm White 4 0.5 W 220 mA 120 lm
SFA40123-5 Highly Polished         12 V Cool White 4 P4 40 mA 20 lm
SFA40123-6 TIN Plated Golden       12 V Cool White 4 P4 40 mA 20 lm



4" LED Puck Light
* Highly polished 304 stainless steel housing, optional TIN (Titanium Nitrite) plated golden finish
available. Ideal for interior use in Boat, RV and Caravan as ceiling light and other applications
* Clear PC lens, engineered lens optics provides a uniform and wide angle ( 120 )light
beam illuminating from LEDs
* 6 LEDs of super bright 0.5W type in cozy warm white lighting color, also available in super flux
(P4) LEDs in cool white for less brightness; LED features super long life span up to 50,000hours
* Color Temperature: Warm White=4,000~4,500K, Cool White=7,000~8,000K
* Circuit board completely sealed in epoxy to resist water, corrosion and vibration
* Rated for 12V, tested to 13.8V

           Finish              Input   Lighting    No. of LED Current Draw Lumen
SF No.                          Voltage Color        LEDs Type at 13.8V      Output

SFA40127-1 Highly Polished SS    12 V Warm White 6 0.5 W 160 mA 120 lm
SFA40127-2 TIN Plated Golden     12 V Warm White 6 0.5 W 160 mA 120 lm
SFA40127-3 Polished SS Multi-voltage 12~24 V Warm White 6 0.5 W 220 mA 180 lm
SFA40127-4 TIN Plated Multi-voltage 12~24 V Warm White 6 0.5 W 220 mA 180 lm
SFA40127-5 Highly Polished       12 V Cool White 6 P4 40 mA 30 lm
SFA40127-6 TIN Plated Golden     12 V Cool White 6 P4 40 mA 30 lm
